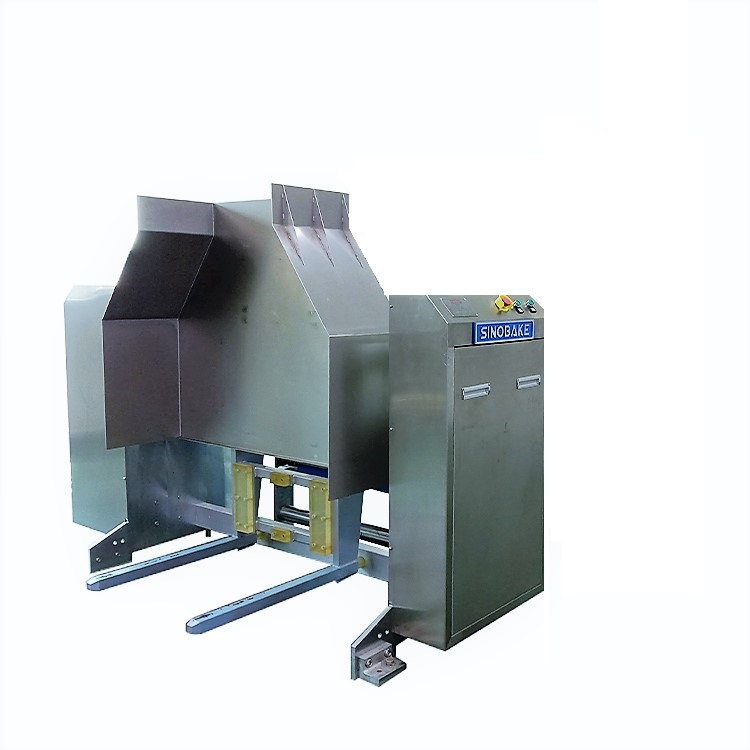

Tilting Machine DL500/DL1000 | Automatic Dough Tilting & Discharging Equipment

1. Core Competitive Advantages
Engineered with premium industrial-grade configurations, both models deliver exceptional durability, operational stability and safety, ensuring seamless integration into diverse pasta production lines:
- Stable Hydraulic Operation & Splash-Free Discharging：Equipped with a high-performance hydraulic system, the machine achieves a tilting angle of up to 120° with smooth, steady and jitter-free operation to prevent material splashing. The DL1000 model features multi-angle self-locking functionality, allowing precise adjustment of discharging speed and volume for refined and consistent production.
- Industrial-Grade Durability & Food-Grade Hygiene：The main load-bearing frame adopts 20mm thick Q235 carbon steel with hard chrome plating, reaching a surface hardness of HRC58-62. This treatment delivers outstanding compression resistance, wear resistance and deformation resistance for prolonged service life. The material guide plate is made of food-grade SUS304 stainless steel, which is corrosion-resistant, non-stick and easy to sanitize, fully compliant with food safety regulations. The DL1000 adopts dual-side hydraulic cylinder layout for balanced stress distribution and enhanced operational stability.
- Smart Touch Control & User-Friendly Operation：Featuring an intuitive touch screen control panel with adjustable parameters and one-touch startup, the equipment requires no professional operational skills. It minimizes human error, lowers labor costs and enables quick operator proficiency for efficient daily production.
- Complete Safety Protection & Zero Dead-Angle Hygienic Design：Standard safety configurations include emergency stop buttons and automatic alarm systems to enable instant shutdown in case of abnormalities, maximizing operational safety. The DL1000 adopts a fully optimized dead-angle-free structure, eliminating residual dough buildup and bacterial growth to achieve superior food hygiene control.
- Premium Brand Components & Ultra-Stable Performance：All electrical components are sourced from Schneider, a globally renowned brand for reliable quality. The matched hydraulic system consists of a 18L/2.2KW/18MPa hydraulic station and Φ80mm heavy-duty hydraulic cylinders, providing sufficient power, stable continuous operation and low failure rates to support 24/7 industrial production.
2. Dual Model Options for Customized Capacity
DL500 Small Hydraulic Tilting Machine (Suitable for Small & Medium Production)
Tailored for small and medium-sized pasta factories, the DL500 perfectly matches 300L cookie mixer buckets. Its compact footprint saves workshop space while maintaining complete functional performance, offering exceptional cost performance for small-scale production lines.
Technical Parameters
- Discharging Mode: Hydraulic lifting & tilting, maximum tilting angle ≥120°
- Applicable Matching Equipment: 300L cookie mixer bucket
- Power Supply: Standard 380V/50Hz, customizable upon request
- Dimensions (L*W*H): 1050mm×800mm×950mm
- Net Weight: 0.5T
- Rated Power: 2.2KW
DL1000 Large Hydraulic Tilting Machine (Ideal for Large-Scale Mass Production)
Optimized for large-scale automated pasta production lines, the DL1000 adapts to 600KG-1000KG heavy-duty dough mixer hoppers. It maintains stable high-load operation and supports continuous high-volume production, making it the optimal solution for industrial pasta mass production projects.
Technical Parameters
- Discharging Mode: Hydraulic transmission tilting, tilting angle ≥120°, arbitrary angle self-locking
- Applicable Matching Equipment: 600KG-1000KG dough mixer hopper
- Power Supply: Standard 380V/50Hz, customizable upon request
- Dimensions (L*W*H): 2520mm×900mm×1800mm
- Net Weight: 1.5T
- Hydraulic Configuration: 18L/2.2KW/18MPa hydraulic station, Φ80mm hydraulic cylinder
3. Application Scope

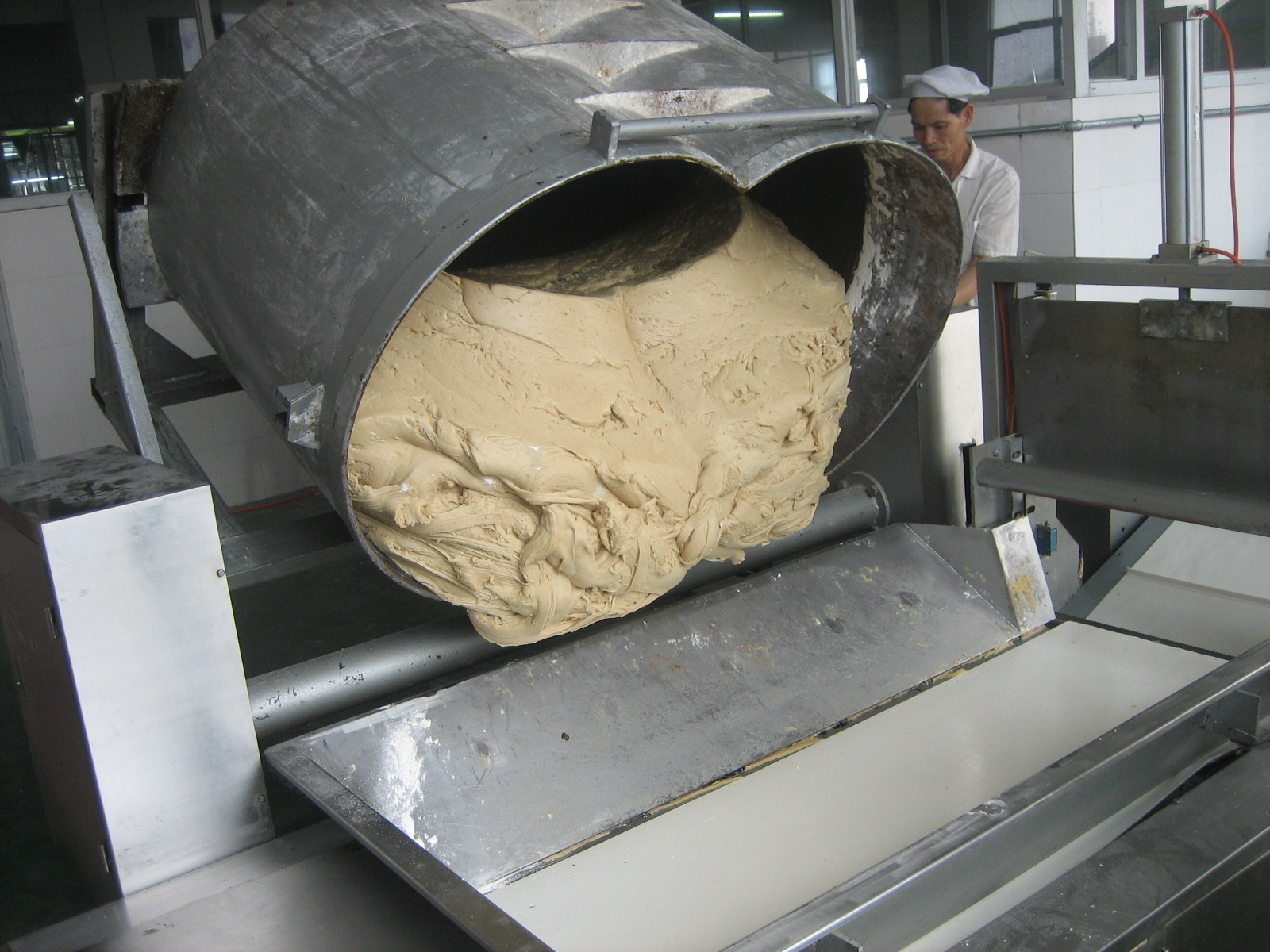

Widely applicable in the production of bread, cookies, pastries and various flour-based food products, this equipment automatically transfers mixed dough from mixing buckets to storage tanks or conveyor hoppers. It seamlessly connects mixing, material storage and conveying procedures, adapting to all sizes of pasta processing workshops. It supports both independent operation and integrated collaboration with full-automatic production lines.
4. Product Overview
Covering small lightweight to large heavy-duty specifications, our DL500 and DL1000 hydraulic tilting machines fully meet diversified capacity requirements for different manufacturers. Featuring reliable hydraulic transmission, intelligent humanized operation, zero-dead-angle hygienic structure and long-lasting industrial quality, our equipment solves the core pain points of traditional manual discharging, including low efficiency, high labor cost, poor hygiene and material waste. It empowers food factories with intelligent and standardized production upgrading, helping enterprises reduce operational costs, boost productivity and strengthen market competitiveness.
