Product Description
The core distinctions lie in their mechanical principles and suitable dough types:

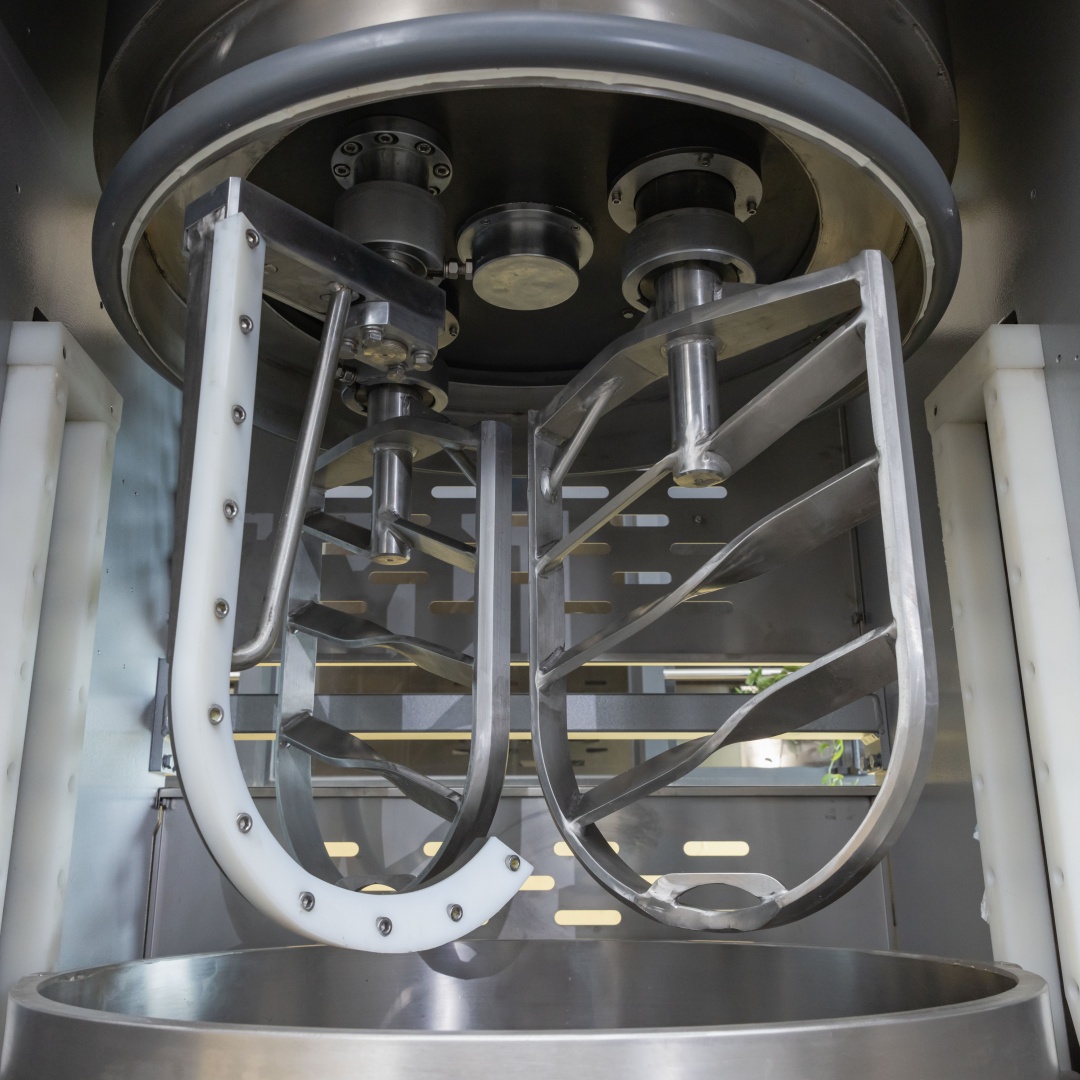

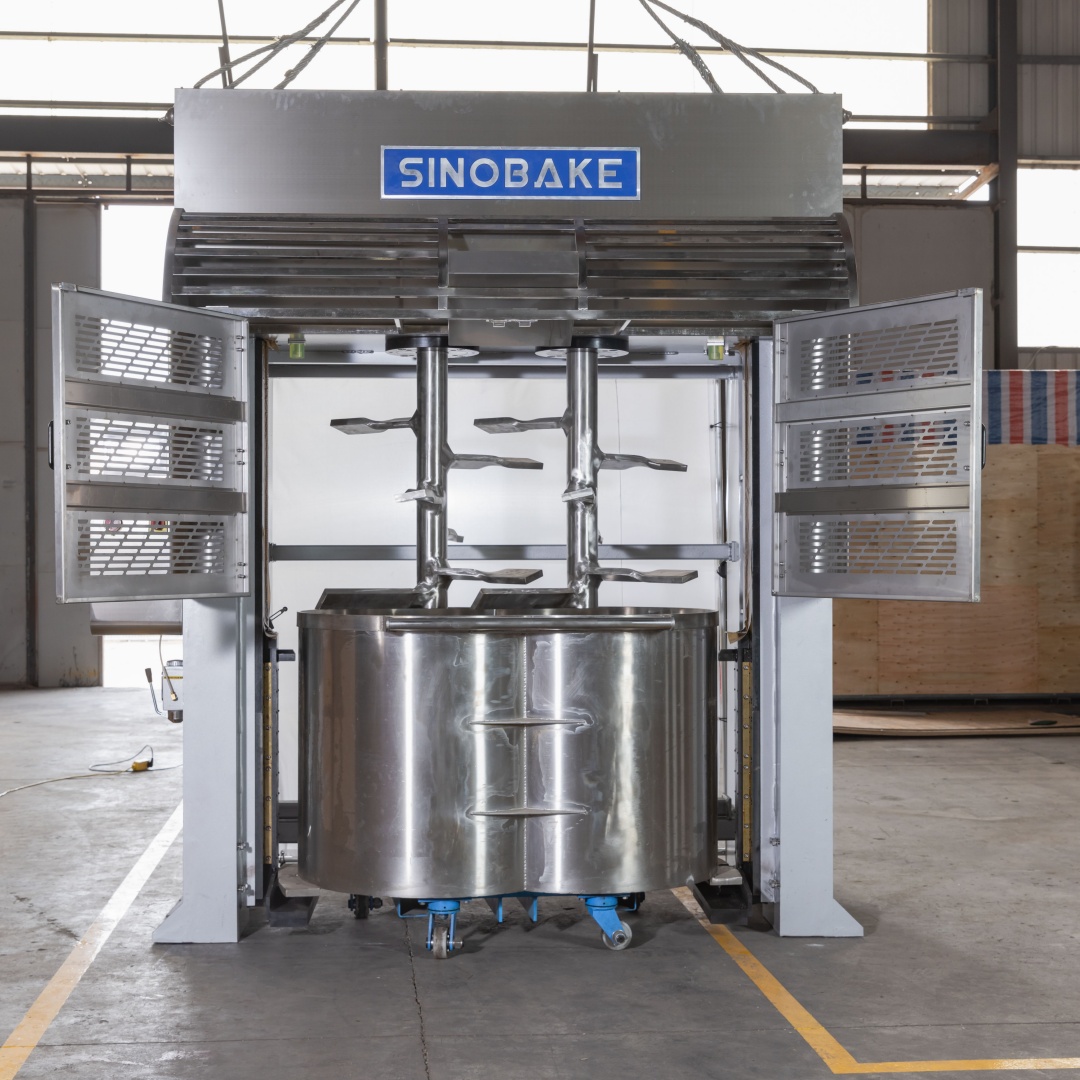

HML500 is a Vertical Twin-Spiral Dough Mixer. It utilizes a double-row chain drive, a movable flat figure-eight shaped mixing tank, and vertical twin-propeller/blade paddles. With a large capacity (500kg), it is suitable for various types of biscuit doughs, particularly convenient for producing fermented biscuits and soda crackers due to its detachable and replaceable mixing bowl.
HML300 is a Vertical Planetary Mixer. It employs a planetary transmission system, a movable round mixing tank, and a vertical three-bladed propeller. It is designed for high-fat cookie and shortbread biscuit doughs.
Detailed Specifications Table)
Item | HML500 ( Vertical Twin-Spiral Mixer) | HML300 (Vertical Planetary Mixer) |
Mixing Capacity | 500 kg/batch | 200 kg/batch (Tank: 300L) |
Working Speed | 15-30 rpm (Frequency Conversion) | Revolution: 18 rpm / Rotation: 75 rpm (Variable Frequency) |
(L*W*H) | 2540*1600*3250 mm | 1650*2000*3100 mm |
Theoretical Weight | ~5 T | ~3.5 T |
Main Motor Power | 18.5 kW | 11 kW |
Tilting Motor (Cylinder) | 2.2 kW | 2.2 kW |
Blade Form | Vertical Twin Propellers/Blades | Vertical Three-Bladed Propeller |
Mixing Tank Type | Movable Flat Figure-Eight Shape | Movable Round Tank |
Lifting Method | Electric Bucket Lifting | Electric Bucket Lifting |
Main Drive Method | Double-Row Chain Drive | Planetary Transmission |
Suitable For | Various biscuit doughs; ideal for fermented/soda crackers | High-fat cookie & shortbread doughs |
Standard Accessory | Includes Stainless Steel Mixing Bowl | Includes Stainless Steel Mixing Bowl |
(Uniform Material & Brand Standards)
Side Plate: Q235 carbon steel, chrome-plated.
Dough-contact Parts (Tank, Shaft, Paddles): Stainless steel 304.
Outer Cover: SUS304 stainless steel.
Bearings: Japanese NSK.
Motor & Reducer: German SEW/Siemens.
Control Electrical: Primarily French Schneider.
(Core Features)
PLC control with touch screen operation.
Hygienic design without dead angles.
Equipped with emergency stop and safety alarms.
Neat and aesthetic wiring layout using aluminum alloy cable trays.
