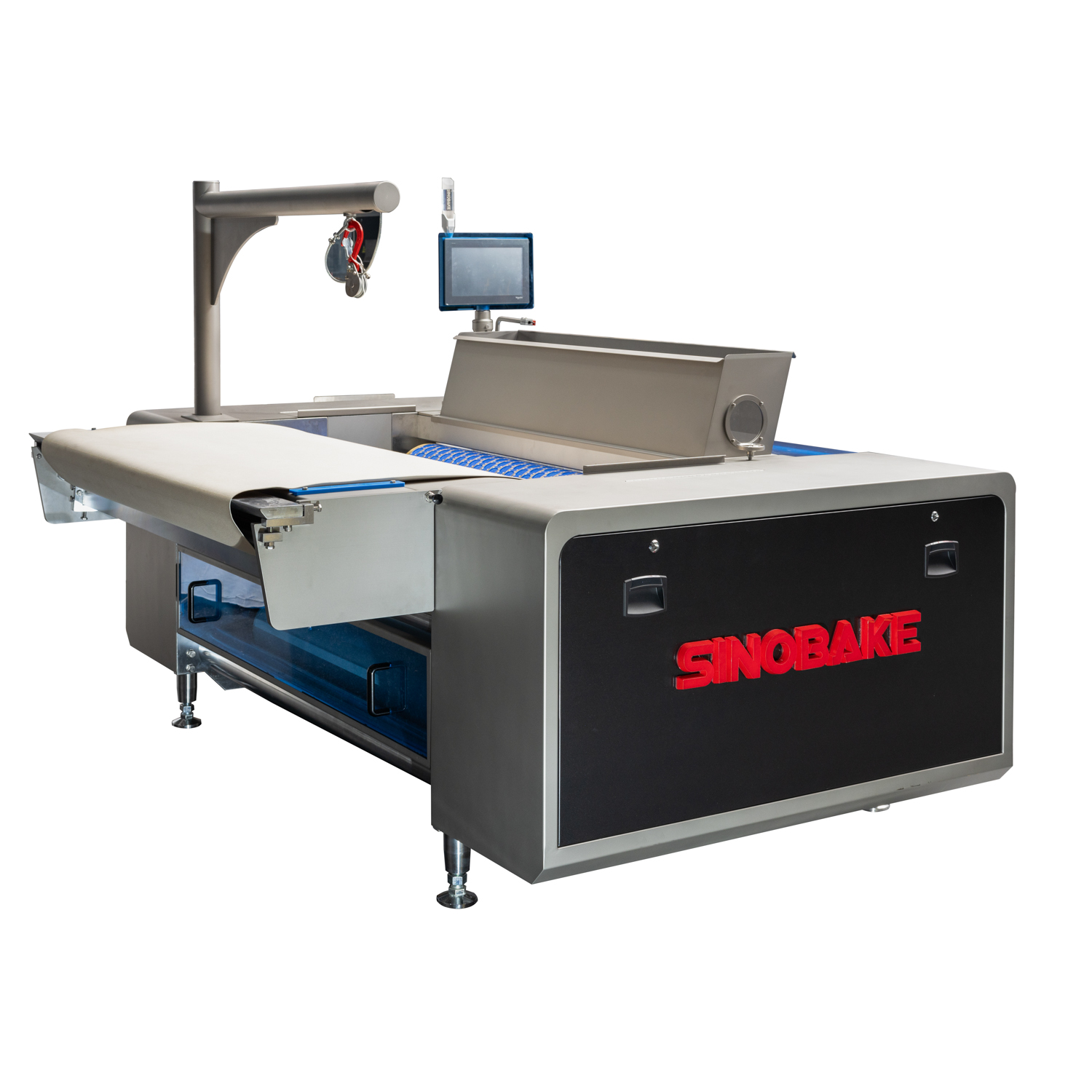

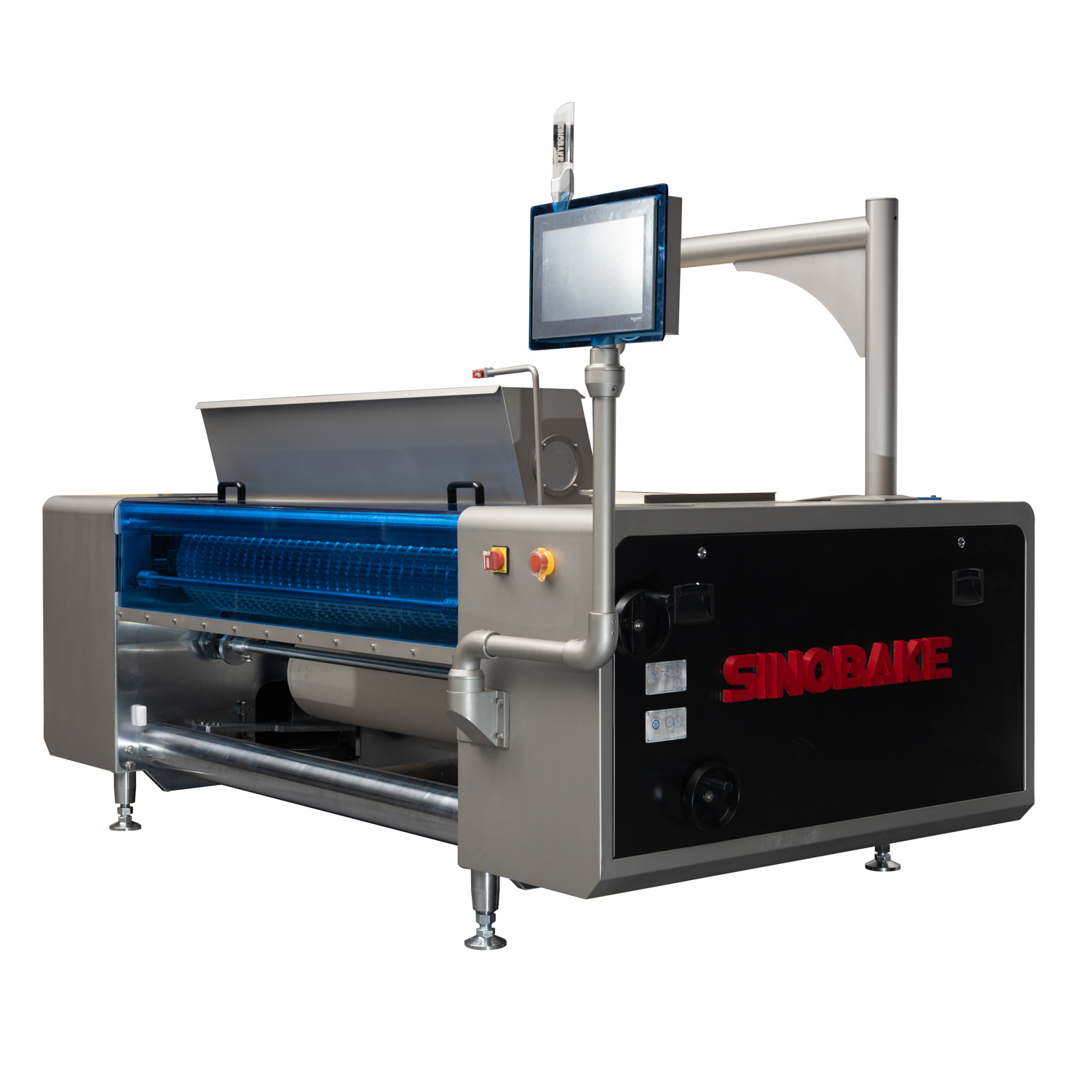

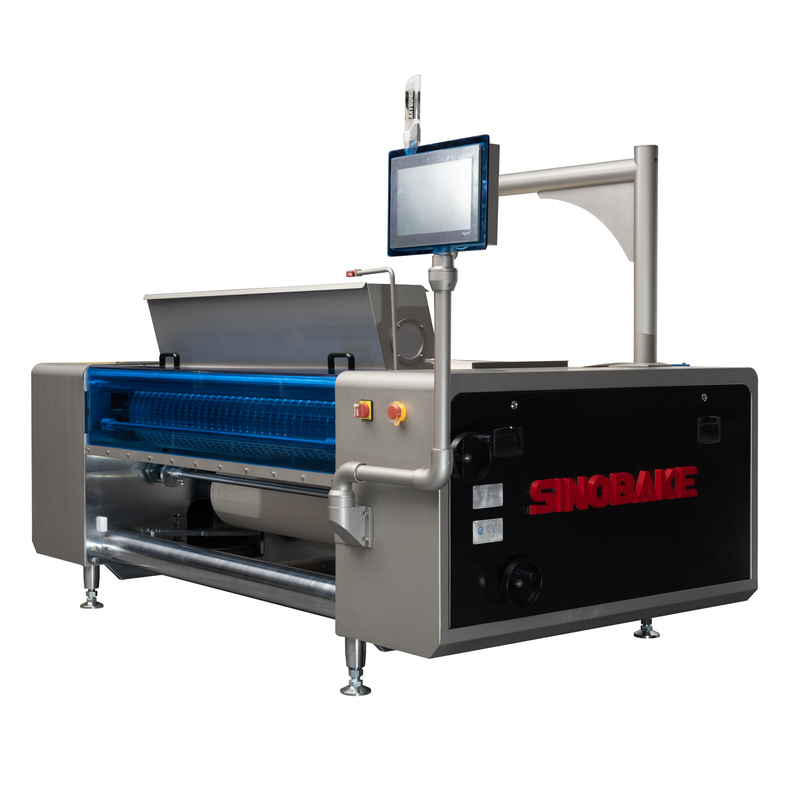

Rotary Moulder

Models: By working width: WG1000, 1200mm, 1500mm, 1800mm.

Technical Parameters: Working width, die/rubber/conveyor drive roller diameters, main motor power, energy requirements, dimensions, weight, power distribution capacity, lifting mold trolley (optional).

Material Standards: Side plates (Q235, hard chrome-plated), conveyor rack (304 stainless steel), pallets/covers (SUS304), cable tray (aluminum alloy), main geared motor (SEW/Siemens), control electrical components (Schneider), conveyor belt (special belt for rotary cutters), bearings (NSK), cylinders (YSC).

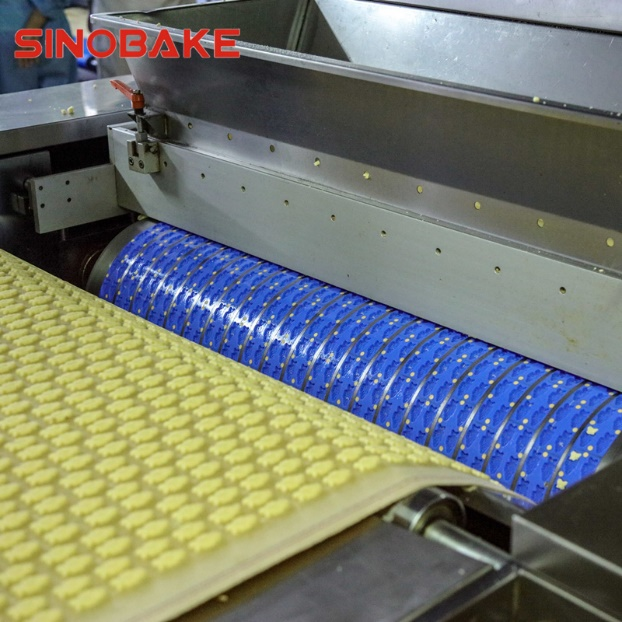

Features: Used for shaping high-fat shortbread cookies and peach shortbread-like pastries. Mold, feed roller, and conveyor belt each controlled by independent motor for easy adjustment. Scraper manually adjusted via cam. Main drive uses gear transmission. Mold pressure controlled by airbag, gap by touch screen. Conveyor belt uses pneumatic tensioning and pneumatic alignment. Safety protection devices. No-hygienic-dead-angle design.
